Transformer roller - 50mm Transformer roller with cast iron wheel - 250kg Load capacity | TC050AA-050022-01
- Part No.: TC050AA-050022-01
- Wheel Dia.: 50 mm / 2 inch
- Tread Width: 22mm / 0.87 inch
- Wheel Type: Cast iron wheel
- Caster Type: Rigid transformer roller
- Fitting Type: Top plate transformer roller
- Load Cap.: 250 kg / 551 lbs
- APP: Transformer roller caster
Technical Data
Features
?50mm Trnasformer roller | TC050AA-050022-01
AgoodTool Transformer Rollers are for over twenty years leader in the production of Transformers Wheels Casters and supports for electrical transformers in oil or resin, its full range includes wheels for the distribution both in cast iron, the innovative Nylon-fiberglass and machined steel. The measures are from diameter 70 to diameter 410mm, and the load capacities are from 800kg to 70tons. It exports in 30 countries all over the world.
Featured ?50mm Trnasformer roller | TC050AA-050022-01

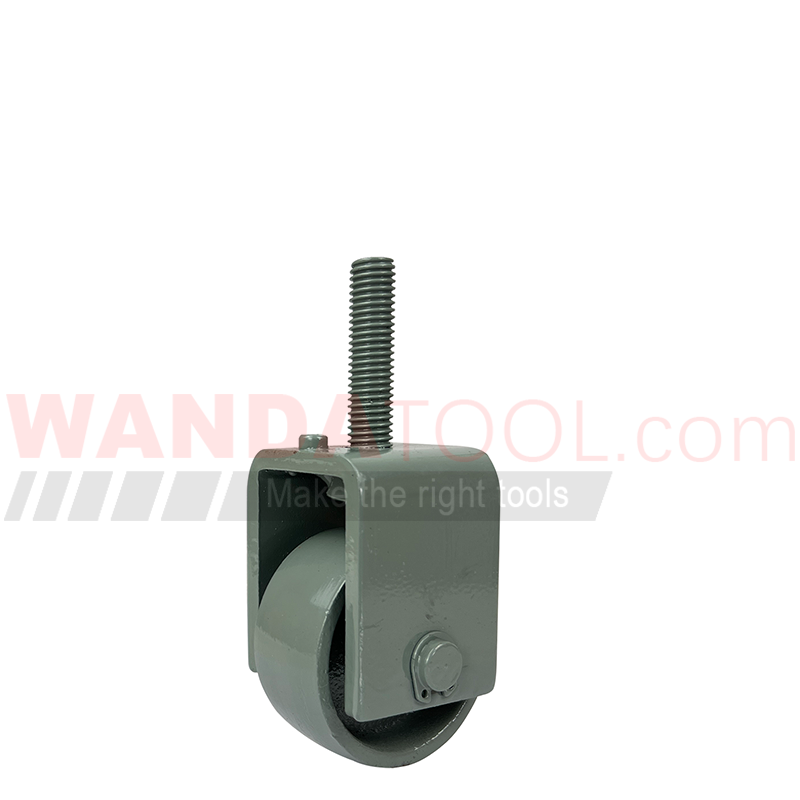

Cast iron wheel ?50 transformer caster with one M10×50 screw bolt and one ?6 pin fixed bracket
Transformer roller bracket: Made of 5mm thickness pressed steel, RAL7033 painted.
Transformer wheel: ?50×22mm cast iron wheel, RAL7033 painted.
Certified maximum load capacity 250kg

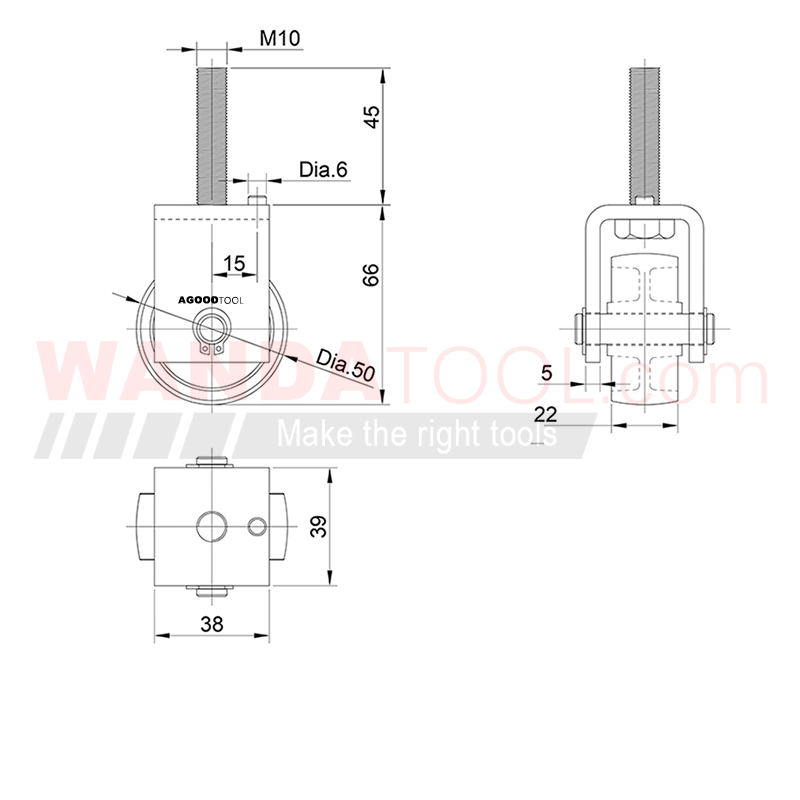

Drawing
Accessories & Versions
Download
