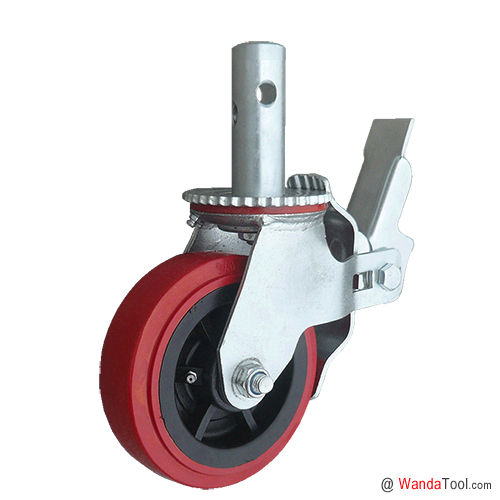

Scaffolding caster - 6 inch Scaffold caster- Solid stem scaffold caster - TPU wheel | SCAFA-150050R-93BR
- Part No.: SCAFA-150050R-93
- Wheel Dia.: 150mm / 6 inch caster
- Tread Width: 50 mm / 2 inch caster
- Wheel Mat.: TPU wheel caster
- Type: Total lock swivel caster
- Mounting: Solid round stem caster
- Load Cap.: 250 kg / 550 lbs caster
- APP: Scaffolding caster
Technical Data
| CASTER TECHNICAL | °C / mm / kg | °F / inch / lbs |
| Wheel Diameter | 150 mm | 6 inch |
| Width of Tread | 50 mm | 2 inch |
| Wheel Material | Red PU on black PP core | Red PU on black PP core |
| Hardness of Tread | Shore A 90 | Shore A 90 |
| Wheel Bearing | Roller bearing | Roller bearing |
| Fitting Type | Solid round stem | Solid round stem |
| Stem Dia. | 34.5 mm | 1.35 inch |
| Stem Length | 100 mm | 4 inch |
| Hole Spacing (L1) | 63.5 mm | 2.5 inch |
| Hole diameter (P1) | 12.7 mm | 0.5 inch |
| Hole Spacing (L2) | 50.8 mm | 2.0 inch |
| Hole diameter (P2) | 12.7 mm | 0.5 inch |
| Swivel Offset | 41 mm | 1.61 inch |
| Swivel Radius | 116 mm | 4.56 inch |
| Overall Height | 187 mm | 7.36 inch |
| Caster Brake | Total lock swivel caster | Total lock swivel caster |
| Load Capacity | 250 kg | 660 lbs |
| Caster Weight | ||
| Part No. | SCAFA-150050R-93BR | SCAFA-150050R-93BR |
| SKU | 6915000860000 | 6915000860000 |
Features
6"×2" Solid stem standard scaffold caster with red PU on black PP wheel | SCAFA-150050R-93BR
SCAFA series solid stem standard scaffold caster are equipped with total lock brakes. This is a standard scaffold caster specially designed for the standing and short-distance movement of construction scaffolding equipment. 440-1100lbs load capacity per caster, features an easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning. SCAFA series scaffold caster has the characteristics of scientific design, convenient operation and safe use.
FEATURES
? Pressed steel double ball raceway swivel head. King bolt and nut construction for added strength. Sealed swivel section available, Keeps out debris.
? The housing is made of high-quality pressed steel and double-sided welding to upper raceway way, which can withstand high load environment.
? Features an easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning.
? Grease fitting in swivel and wheel hub for easy lubrication
? Red polyurethane on black PP core wheel. Roller bearing with drilled hardened steel spanner bushing.
? Formed rig is stronger than welded design.
CUSTOM-MADE 6 INCH SCAFFOLD CASTER AVAILABLE
Dia. 25 mm, Dia. 29 mm, Dia. 31 mm, Dia. 34.5 mm, Dia. 36 mm and Dia. 38 mm solid stem available.
Drawing
Accessories & Versions
Download
