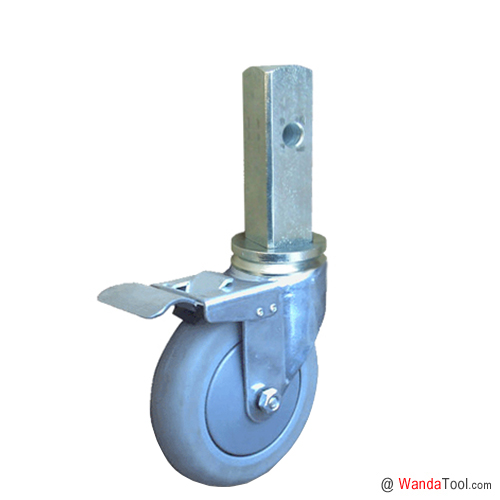

5 inch Scaffold caster - Square stem swivel locking caster - TPR caster | SCSSA-125032B-92
- Part No.: SCSSA-125032B-92
- Wheel Dia.: 125 mm / 5 inch caster
- Tread Width: 32 mm / 1.25 inch caster
- Wheel Type: TPR wheel caster
- Caster Type: Swivel with total lock caster
- Fitting Type: Square stem caster
- Load Cap.: 120 kg / 265 lbs caster
- APP: Scaffolding caster
Technical Data
| CASTER TECHNICAL | °C / mm / kg | °F / inch / lbs |
| Wheel Diameter | 125 mm | 5 inch |
| Width of Tread | 32 mm | 1.25 inch |
| Wheel Material | Grey TPR wheel | Grey TPR wheel |
| Hardness of Tread | Shore A 77 | Shore A 77 |
| Wheel Bearing | Ball bearing | Ball bearing |
| Fitting Type | Solid square stem caster | Solid square stem caster |
| Square Stem Type | 32×32 mm | 1.26×1.26 inch |
| Square Stem Length | 100 mm | 4 inch |
| Hole Spacing (L1) | 63.5 mm | 2.5 inch |
| Hole diameter (P1) | 12.7 mm | 0.5 inch |
| Hole Spacing (L2) | N/A | N/A |
| Hole diameter (P2) | N/A | N/A |
| Swivel Offset | 35 mm | 1.38 inch |
| Swivel Radius | 97.5 mm | 3.84 inch |
| Overall Height | 160 mm | 6.30 inch |
| Caster Brake | Total lock swivel caster | Total lock swivel caster |
| Load Capacity | 120 kg | 265 lbs |
| Caster Weight | kg | lbs |
| Part No. | SCSSA-125032B-92 | SCSSA-125032B-92 |
| SKU | 6912500840 | 6912500840 |
Features
5 inch Scaffold caster - Solid square stem locking caster - TPR wheel caster | SCSSP-125032-92
SCSSA series solid square stem scaffold casters are designed to fit square tube posts form mobile shelf carts and other transport units. Easy to install-simply remove adjustable foot assembly on each post, and gently tap the casters into the post until fully inserted. Non-marking, the tread provides good floor protection along with quiet operation.
Featured 5 inch solid square stem scaffold caster with TPR wheel
Castor Housing: The housing is made of high-quality pressed steel.
Mounting and Swivel Cross Section: 1.25 inch solid square stem type with cross drilled hole scaffolding caster. Pressed steel double ball raceway in swivel head.
Total lock brake caster.
Grey Thermo-Plastic-Rubber material wheel
Custom Made 5 inch square pipe stem scaffold caster with Grey TPR wheel
For customization & special application options, consult please.

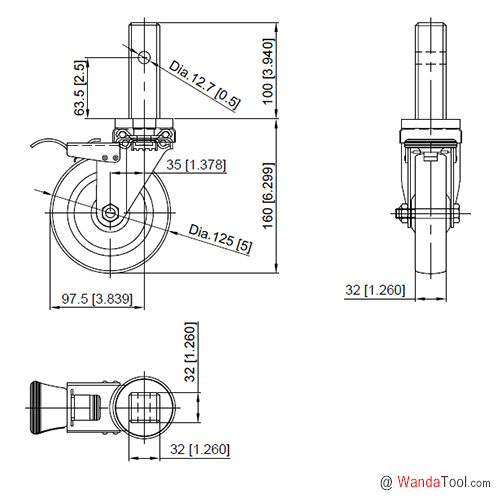

Drawing
Accessories & Versions
 |  | |||
Download
