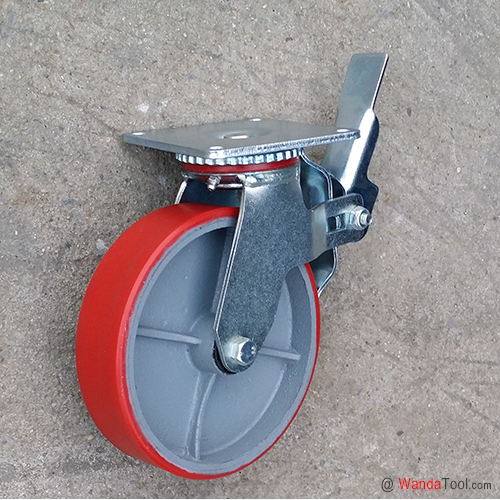

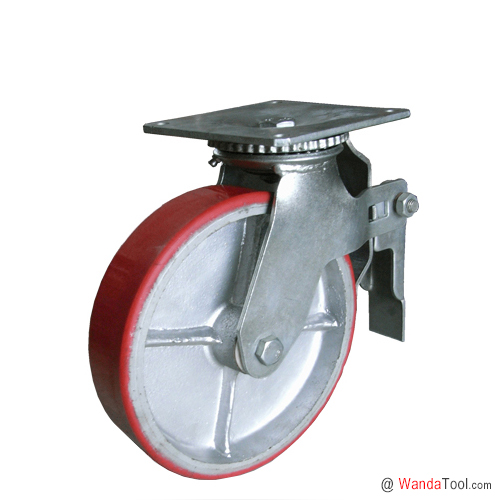

Scaffolding caster - 8 in. Scaffold caster - Top plate scaffold caster with moldon polyurethane wheel | SCAPA-200050R-13
- Part No.: SCAPA-200050R-13
- Wheel Dia.: 200 mm / 8 inch caster
- Tread Width: 50 mm / 2 inch caster
- Wheel Type: PU on cast iron wheel
- Caster Type: Total lock swivel caster
- Fitting Type: Top plate caster
- Load Cap.: 450 kg / 990 lbs caster
- APP: Scaffolding caster
Technical Data
| CASTER TECHNICAL | °C / mm / kg | °F / inch / lbs |
| Wheel Diameter | 200 mm | 8 inch |
| Width of Tread | 50 mm | 2 inch |
| Wheel Material | PU on cast iron wheel | PU on cast iron wheel |
| Hardness of Tread | Shore A 97 | Shore A 97 |
| Wheel Bearing | Roller bearing | Roller bearing |
| Fastening Type | Top plate caster | Top plate caster |
| Size of Plate | 139×126 mm | 5.5×5 inch |
| Plate Hole Centers | 114×104 mm | 4.5×4.1 inch |
| Plate Hole | 11.0 mm | 0.44 inch |
| Swivel Offset | 53 mm | 2.08 inch |
| Swivel Radius | 153 mm | 6.02 inch |
| Overall Height | 237 mm | 9.33 inch |
| Caster Brake | Total lock swivel caster | Total lock swivel caster |
| Standard | ||
| Load Capacity | 450 kg | 990 lbs |
| Caster Weight | ||
| Part No. | SCAPA-200050R-13 | SCAPA-200050R-13 |
| SKU | 6920000780000 | 6920000780000 |
Features
8英寸平板式鐵芯聚氨酯腳手架腳輪 | SCAPA-200050R-13
SCAPA 系列平板式腳手架腳輪是一款標準的鷹架輪腳手架腳輪，常與腳手架可調節絲桿底座配套使用。根據輪子材質的不同，單個腳輪設計載荷從200 公斤*500 公斤不等。設計主要用于腳手架系列產品，齒狀的剎車設計，配套于腳手架時，可以同時牢靠的鎖定輪子和支架的轉動，有效保證了腳手架使用時的安全。
SCAPA系列腳手架腳輪特征
支架設計：支架部分采用整體鋼板沖壓成型，比焊接型支架提升30%的性能。
剎車設計：采用全剎車設計，能同時有效及牢靠的鎖定輪子和旋轉頂板，防止腳手架產品的移位。
腳輪防塵圈：聚氨酯防塵圈，可以防止灰塵和細紗的纏繞而影響腳輪的旋轉。
旋轉板連接螺栓：獨特設計的旋轉板連接螺栓，防松螺母鎖定，提高強度。
腳輪潤滑：腳輪的旋轉頂板和輪子的輪轂部分，安裝注油杯，更好的提高腳輪的運動性和靈活性。
輪子材質：鐵芯聚氨酯輪子，鑄鐵輪芯，高負載能力，紅色CPU，超級耐磨聚氨酯澆注成型。
輪子軸承：標準裝配滾針軸承，熱處理襯套，?19*3 無縫鋼管套管，能有效承受來自外界的徑向和軸向壓力。
SCAPA系列腳手架腳輪定制
可根據客戶要求定制生產。
Drawing
Accessories & Versions
Download
Previous product：Scaffolding caster - 8 in. Scaffold caster - Top plate scaffold caster with moldon rubber wheel | SCAPA-200050R-12
Next product：Scaffolding caster - 8 in. Scaffold caster - Top plate scaffold caster with PU wheel | SCAPA-200050R-93
