Technical Data

Features

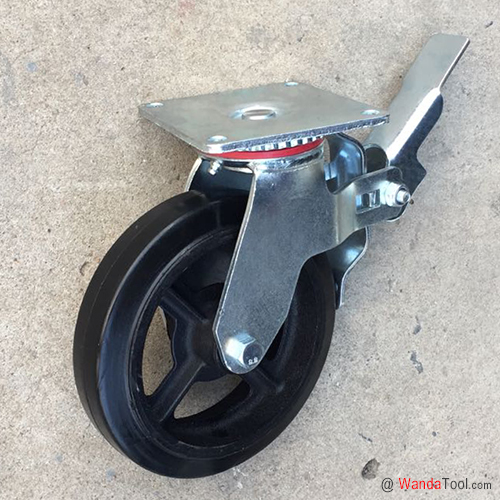

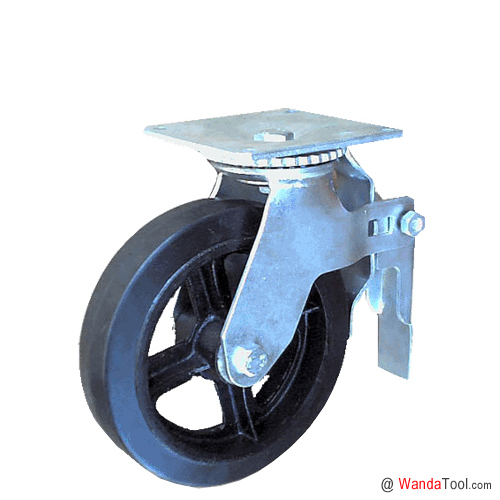

8"×2" Top plate scaffold caster with moldon rubber wheel | SCAPA-200050R-12

8-inch Moldon rubber scaffold casters with top plate are equipped with total lock brakes. This is a scaffold caster specially designed for the standing and short-distance movement of construction scaffolding equipment. 440-1100lbs load capacity per caster, features an easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning. SCAPA-200050R-12 series scaffold caster has the characteristics of scientific design, convenient operation and safe use.

Featured 8 inch Top plate scaffold caster with moldon rubber on cast iron wheel

? Caster Housing: The housing is made of high-quality pressed steel and double-sided welding to upper raceway way, which can withstand high load environment. Formed rig is stronger than welded design.

? Mounting and Swivel Cross Section: Top plate scaffolding caster. Pressed steel double ball raceway swivel. King bolt and nut construction for added strength.

? Swivel head sealed: Polyurethane seal ring keeps out debris.

? Total lock brake: Easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning.

? Lubrication: Zerk in swivel section and wheel for easy lubrication.

? Moldon Rubber on Cast Iron Wheel: This Mold-on cushion rubber treads are vulcanized to cast iron cores. The soft rubber tread affords a cushion effect to the load. These wheels are highly shock-absorbing and provide quiet operation, while dampening vibration.

? Bearing & Axle: Standard straight roller bearing with drilled hardened steel spanner bushing and plastic side retaining thrust washers. 12.5mm diameter wheel solid axle complete with lock nut.

? Lubrication: Zerk in swivel section and wheel for easy lubrication.

Custom Made  8 inch Top plate scaffold caster with moldon rubber on cast iron wheel

Custom design scaffolding caster available。
