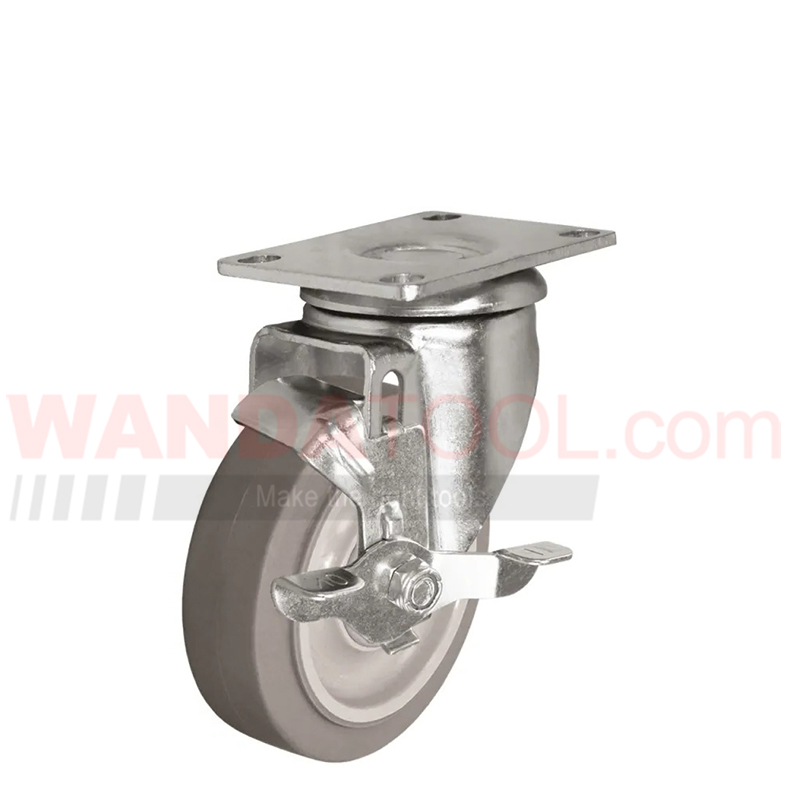

5"×1.25" TPR thermoplastic rubber wheel - Swivel top caster with side brake top locking - 325lbs capacity | 330PS-125032ANB-92GF-STA
- Part No.: 330PS-125032ANB-92GF-STA
- Wheel Dia.: 126mm / 5inch caster
- Tread Width: 32mm / 1.25inch caster
- Wheel Type: Grey TRP wheel
- Caster Type: Side brake swivel caster
- Fitting Type: Top plate caster
- Load Cap.: 147kg / 325 lbs caster
- APP: Light-Medium duty casters
Technical Data
| CASTER TECHNICAL | °C / mm / kg | °F / inch / lbs |
| Wheel Diameter (D) | 126 mm | 5 inch |
| Width of Tread (W) | 32 mm | 1.25 inch |
| Wheel Material | Grey TPR on PP core wheel | |
| Hardness of Tread | 65 to 75+/-5 Shore A | |
| Wheel Bearing | Annular ball bearing | |
| Caster Brake | Side brake swivel caster, top lock wheel face | |
| Fitting Type | Top plate | |
| Plate Size (A×B) | 93×63 mm | 3.63×2.5 inch |
| Hole Centers (X×Y - X'×Y') | 78×45 - 70 mm | 3.06×1.75 - 2.79 inch |
| Plate Hole (P) | 8.2 mm | 0.32 inch |
| Swivel Offset (E) | 32 mm | 1.26 inch |
| Swivel Radius (R) | 96 mm | 3.81 inch |
| Load Height (H) | 156mm | 6.18 inch |
| Load Capacity | 147 kg | 325 lbs |
| Caster Weight | 1.2 kg | 2.7 lbs |
| Packing | 30PCS/CTN | |
| Remark | ROHS | |
| Part Number | 330PS-125032ANB-92GF-STA | |
| SKU | 6912503003 | |
Features
5"×1.25" TPR Wheel Swivel Top Caster with Side Brake
330 Series performance TPR (Thermoplastic Rubber) or TPE (Thermal Plastic Elastomer) wheel caster is specially engineered to provide unsurpassed durability and reliability. Non-marking thermoplastic elastomer flat tread is permanently bonded to a ribbed polyolefin wheel core. WandaTool TPR wheel offers the advantages of both hard and soft tread materials in a single wheel. Like a hard tread wheel, TPR wheel rolls easily and is very durable. Like a soft tread wheel, it rolls quietly, protects floors and resists impacts with a cushion ride. Absorbs shock to help protect equipment.
Featured 5"×1.25" Side brake swivel caster with grey TPR wheel
Castor Housing: The housing is made of high-quality pressed steel.
Pressed steel double ball raceway in swivel head.
Top Lock : Pressed steel side brake, top lock the wheel face.
Maximum weather-ability and resistance to chemicals, water and steam
Rejects floor debris, such as metal shavings, for long service life
Custom Made Thermoplastic Rubber (TPR) Wheel Casters Available
For customization & special application options, consult please.
Drawing
Accessories & Versions
Accessories
Versions
Veiw 5" TPR Wheel Plate Swivel Top Lock Caster By Mobile
 |
5"×1.25" Grey TPR Wheel Top Plate Brake Caster Tags
| 5inch TPR Caster 5×1.25in. Grey TPR wheel caster |
Download
5"×1.25" TPR swivel top plate caster wtih side brake.pdf
