Nose Roller - 4 x 4 Nose Roller with Axle For Roll-Off Containers | WHL-101101-S-AX038165
- Part No.: WHL-101101-S-AX038165
- Wheel Dia.: 101 mm / 4 inch
- Tread Width: 94.6 mm / 3.73 inch
- Hub Length: 101 mm / 4 inch
- Wheel Mat.: Steel nose roller
- Bearing: Plain bore
- Load Cap.: 18150kg kg / 40,000 lbs
- APP: Nose roller for roll-off containers
Technical Data
| WHEEL TECHNICAL | °C / mm / kg | °F / inch / lbs |
| Wheel Diameter | 101 mm | 4 inch |
| Tread Width | 94.6 mm | 3.73 inch |
| Wheel Hub Material | Steel | Steel |
| Wheel Hub Color | Black paint | Black paint |
| Hub Length (Plain Bore) | 101 mm | 4 inch |
| Plain Bore ID | 38 mm | 1.5 inch |
| Wheel Tread Material | N/A | N/A |
| Wheel Tread Color | N/A | N/A |
| Hardness of Tread | ||
| Wheel Bearing | N/A | N/A |
| Bearing Position | N/A | N/A |
| Bearing ID | N/A | N/A |
| Hub Length (With Bearing) | N/A | N/A |
| Bearing Bushing Size | N/A | N/A |
| Bushing Material | N/A | N/A |
| Wheel Axle Size | Dia.38×165 | Dia.1.5×6.5 |
| Wheel Axle Material | Steel | Steel |
| Load Capacity | 18,150 kg | 40,000 lbs |
| Wheel Weight | 5.75 kg | 12.6 lbs |
| Part Number | WHL-101101-S-AX038165 | WHL-101101-S-AX038165 |
| SKU | 6810100030 | 6810100030 |
Features
Manufacture and Explore a wide range of the best Nose roller,Steel nose roller,4 x 4 Nose roller,Nose roller with axle,Nose roller for roll-off containers on WandaTool to find one that suits you! China Wanda 4 x 4 Nose Roller with Axle For Roll-Off Containers, WHL-101101-S-AX038165 is a 4" by 4" nose roller with 40,000 lbs capacity and greasable shaft. Nose Rollers are most often utilized as guides to assist Roll-Off containers, but can also be used for other heavy duty applications.

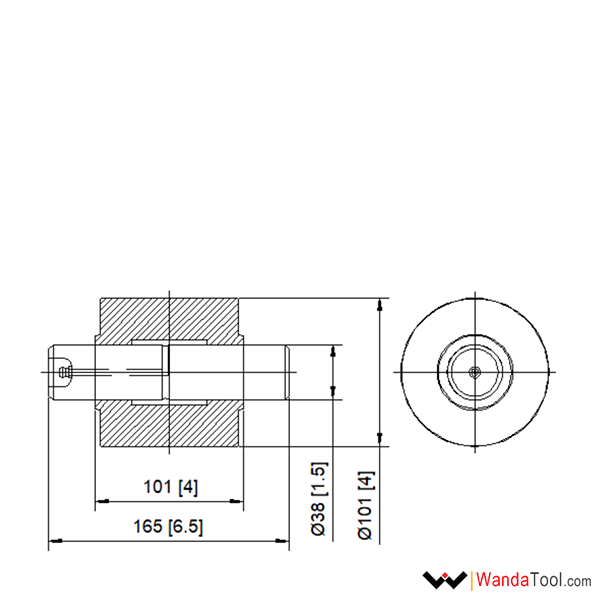

Drawing
Accessories & Versions
Download
