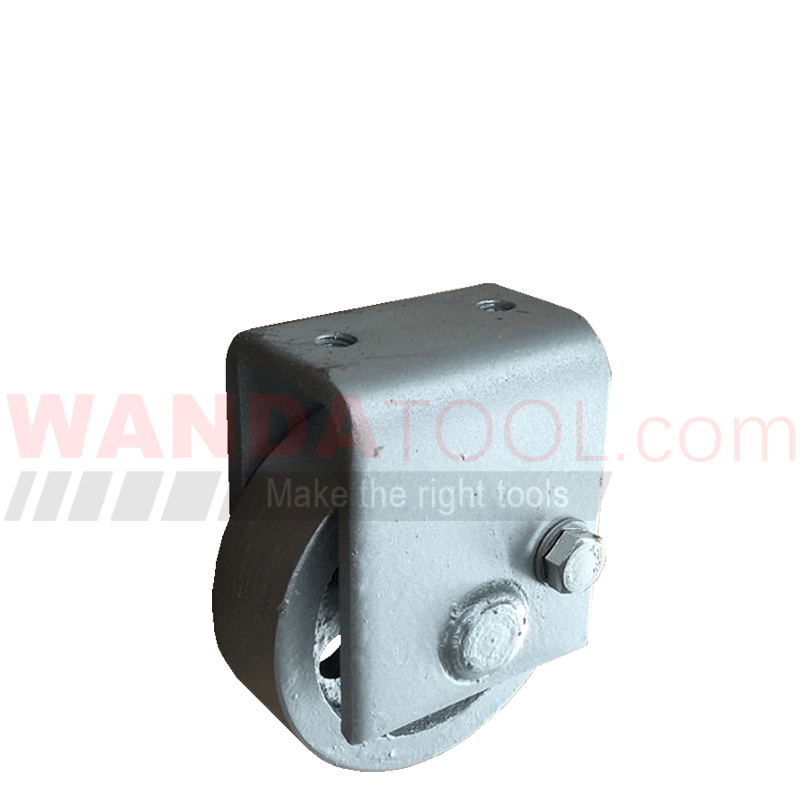

Transformer roller - 125mm Transformer roller with brake - 2500kg Load capacity | TC125DA-125040-01H6-BL
- Part No.: TC125DA-125040-01H6-BL
- Wheel Dia.: 125 mm / 5 inch
- Tread Width: 40mm / 1.58 inch
- Wheel Type: Cast iron wheel
- Caster Type: Transformer roller with brake
- Fitting Type: Top plate transformer roller
- Load Cap.: 2500 kg / 5511 lbs
- APP: Transformer roller caster
Technical Data
| CASTER TECHNICAL | °C / mm / kg | °F / inch / lbs |
| Wheel Diameter (D) | 125 mm | 5 inch |
| Width of Tread (W) | 40 mm | 1.58 inch |
| Wheel Material | Cast iron wheel | |
| Hardness of Tread | N/A | |
| Wheel Bearing | Plain bore | |
| Caster Brake | Transformer roll with brake | |
| Fastening Type | Top plate | |
| Size of Plate (A×B) | 95×40 mm | 4.53×3.15 inch |
| Plate Hole Centres (X×Y) | 60 mm | 2.36 inch |
| Plate Hole(P) | M12 Taps | |
| Swivel Offset(E) | N/A | N/A |
| Swivel Radius(R) | N/A | N/A |
| Load Height(H) | 153 mm | 6.02 inch |
| Load Cap. | 2500 kg | 5511 lbs |
| Weight | ||
| Packing | ||
| Remark | DIN 42561 Standard transformer roller | |
| Part Number | TC125DA-125040-01H6-BL | |
| SKU | 6912500901 | |
Features
125mm Trnasformer roller with brake | TC125DA-125040-01H6-BL
AgoodTec Transformer Rollers are for over twenty years leader in the production of Transformers Wheels Casters and supports for electrical transformers in oil or resin, its full range includes wheels for the distribution both in cast iron, the innovative Nylon-fiberglass and machined steel. The measures are from diameter 70 to diameter 410mm, and the load capacities are from 800kg to 70 tons. It exports in 30 countries all over the world.
Featured 125mm Trnasformer roller with brake | TC125DA-125040-01H6-BL
Transformer roller bracket: made of 10mm thickness pressed steel, zinc plated.
Transformer wheel: ?125×40mm cast iron wheel, gray painted.
Certified maximum load capacity 2500kg
