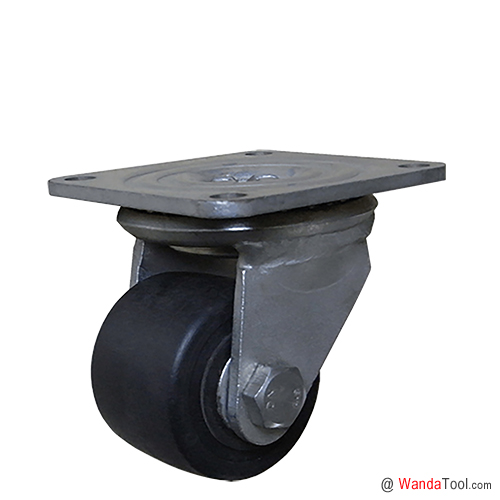

Low profile caster - 2.5 inch Heavy duty low profile swivel caster - Nylon wheel- 880 lbs Capacity | 710PS-065047R-04
- Model No.: 710PS-065047R-04
- Wheel Dia.: 65 mm / 2.5 inch
- Tread Width: 47 mm / 1.85 inch
- Wheel Mat.: Black nylon wheel
- Type: Heavy duty low profile
- Mounting: Top plate
- Load Cap.: 400 kg / 880 lbs
- APP: Low profile caster
Technical Data
| CASTER TECHNICAL | °C / mm / kg | °F / inch / lbs |
| Wheel Diameter | 65 mm | 2.5 inch |
| Width of Tread | 47 mm | 1.85 inch |
| Wheel Material | Polyamide wheel | Polyamide wheel |
| Hardness of Tread | Shore D 85 | Shore D 85 |
| Wheel Bearing | Roller bearing | Roller bearing |
| Mounting Plate | Top plate | Top plate |
| Size of Plate | 100×100 mm | 3.94×3.94 inch |
| Plate Hole Centres | 78×78 mm | 3.07×3.07 inch |
| Plate Hole | 10.2 mm | 0.4 inch |
| Swivel Offset | 21 mm | 0.82 inch |
| Swivel Radius | 53 mm | 2.08 inch |
| Overall Height | 97 mm | 3.82 inch |
| Caster Brake | No brake swivel caster | No brake swivel caster |
| Standard | ||
| Load Capacity | 400 kg | 880 lbs |
| Caster Weight | ||
| Part No. | 710PS-065047R-04 | 710PS-065047R-04 |
| SKU | 6906500200000 | 6906500200000 |
Features
2.5"×1.85" Low profile business machine swivel caster | 710PS(b)-050047R-04
2 inch Low profile business machine swivel caster provides maximum weight distribution at lowest possible overall height. Designed for business machines and other OEM products including medical equipment and electrical/electronic enclosures.
Featured 2.5" Business machine low profile caster
? Top Plate & Yoke Base: Cold formed from 5 mm steel plate. 5 mm steel formed to increase strength and welded inside and outside to yoke base
? Swivel Section: Smooth formed, double ball bearing raceways swivel head.
? Bearing & Axle: Roller bearing with drilled hardened steel spanner bushing and steel side washers. 1/2" diameter wheel axle complete with lock nut.
? Lubrication: Zerk in swivel section and wheel for easy lubrication.
? Finish: Zinc plated to resist corrosion.
Custom made 2.5 inch Low profile business machine swivel caster

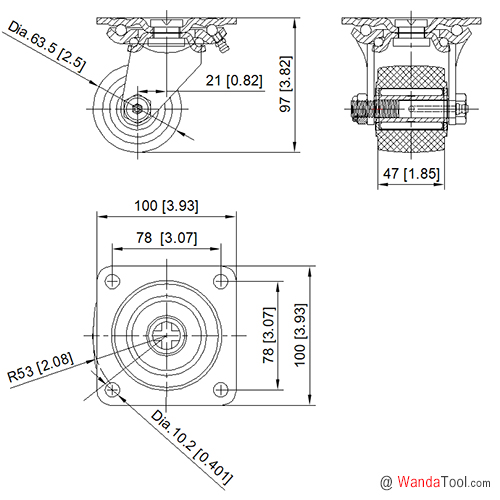

Drawing
