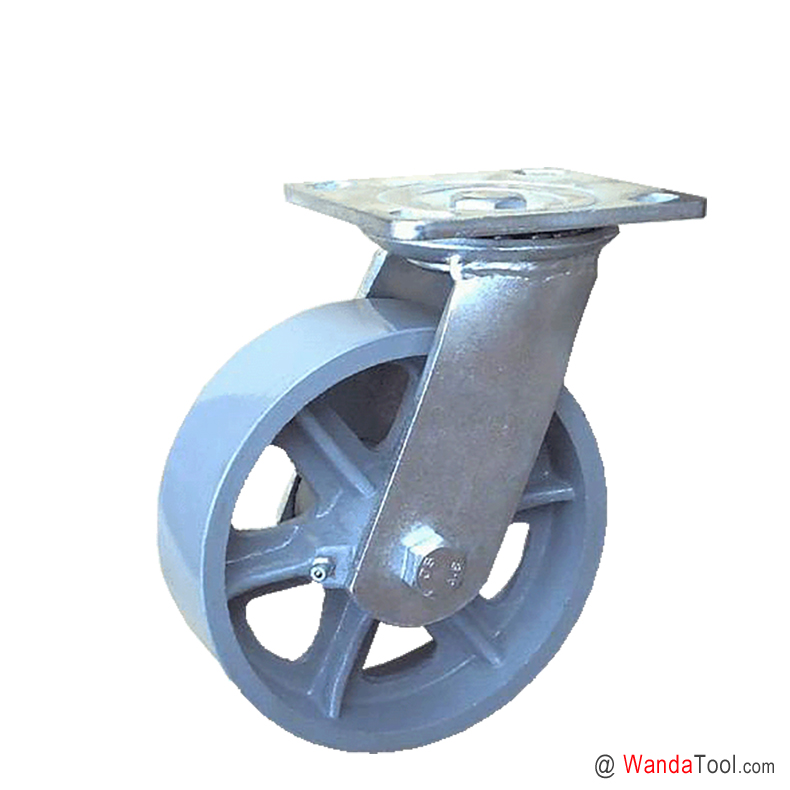

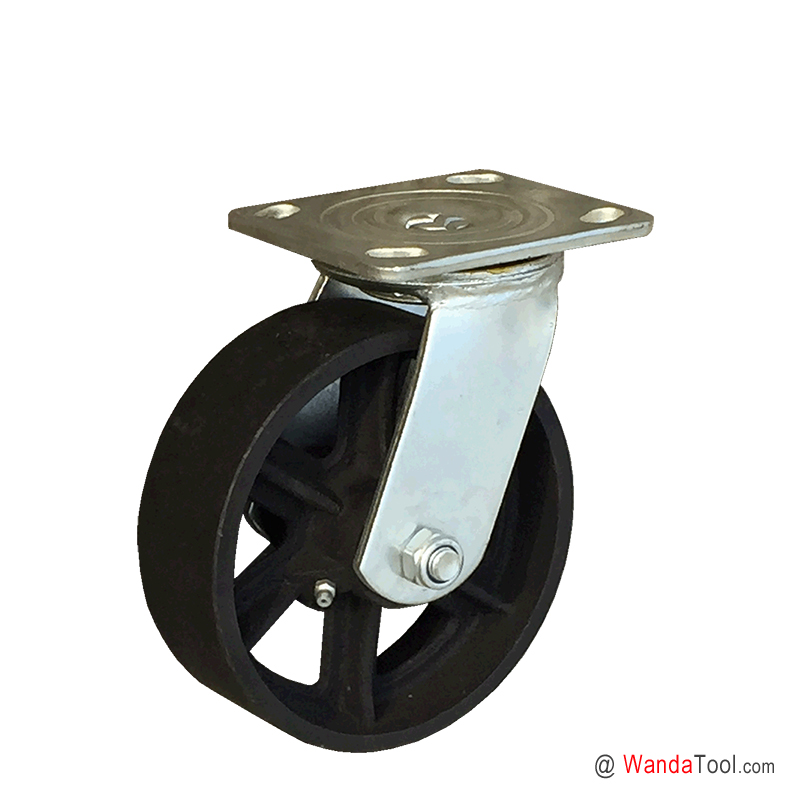

Cast iron caster - 6"×2" Cast iron swivel caster - Medium heavy duty caster - 1100 lbs Capacity | 600PS-150050R-01
- Part No.: 600PS-150050R-01
- Wheel Dia.: 150 mm / 6 inch caster
- Tread Width: 50 mm / 2 inch caster
- Wheel Type: Cast iron wheel caster
- Caster Type: Swivel caster
- Fitting Type: Top plate caster
- Load Cap.: 500 kg / 1100 lbs caster
- APP: Medium heavy duty caster
Technical Data
| CASTER TECHNICAL | °C / mm / kg | °F / inch / lbs |
| Wheel Diameter | 150 mm | 6 inch |
| Width of Tread | 50 mm | 2 inch |
| Wheel Material | Cast iron wheel | Cast iron wheel |
| Hardness of Tread | ||
| Wheel Bearing | Roller bearing | Roller bearing |
| Fastening Type | Top plate caster | Top plate caster |
| Size of Plate | 115×100 mm | 4.5×4 inch |
| Plate Hole Centres | 92×75 to 75×67 mm | 3.625×3 to 3×2.625 inch |
| Plate Hole | 11 mm | 0.43 inch |
| Swivel Offset | 35 mm | 1.38 inch |
| Swivel Radius | 110 mm | 4.33 inch |
| Overall Height | 190 mm | 7.45 inch |
| Caster Brake | No brake swivel caster | No brake swivel caster |
| Standard | ||
| Load Capacity | 500 kg | 1100 lbs |
| Caster Weight | ||
| Part No. | 600PS-150050R-01 | 600PS-150050R-01 |
| SKU | 6915006020 | 6915006020 |
Features
6"×2" Medium heavy duty cast iorn swivel caster | 600PS-150050R-01
6"×2" Cast iron swivel casters have exceptionally long wear life and they are ideal for warehousing, general material handling and manufacturing. In addition, they can be used in temperature extremes. 600PS-150050R-01 Series medium heavy duty casters with cast iron caster wheels are cold formed steel and recommended for medium to medium heavy duty applications.
Featured 6"×2" Medium heavy duty cast iorn swivel caster
Top Plate & Yoke Base: Cold formed from 6mm steel plate. Contact us for Custom Made notched yoke base for factory or installable 4-position swivel lock.
Swivel Section: Smooth formed, double ball bearing raceways swivel head.
Fork Legs: 6 mm steel formed to increase strength and welded inside and outside to yoke base.
Bearing & Axle: Standard straight roller bearing with drilled hardened steel spanner bushing and plastic side retaining thrust washers. 12.5mm diameter wheel solid axle complete with lock nut.
Lubrication: Zerk in swivel section and wheel for easy lubrication.
Finish: Zinc plated to resist corrosion.
Custom made 6"×2" Medium heavy duty cast iorn swivel caster
Yoke Base: Notched yoke base for factory or installable 4-position swivel lock available.
Swivel head sealed: Rubber seals available.
Side Washers: Metal step retaining thrust washers available.
Wheel Axle: 12.5 mm hollow axle with grease fitting available.
Finish: Electrophoresis black plated to resist corrosion available.
Drawing
Accessories & Versions
Accessories
Versions
Download
