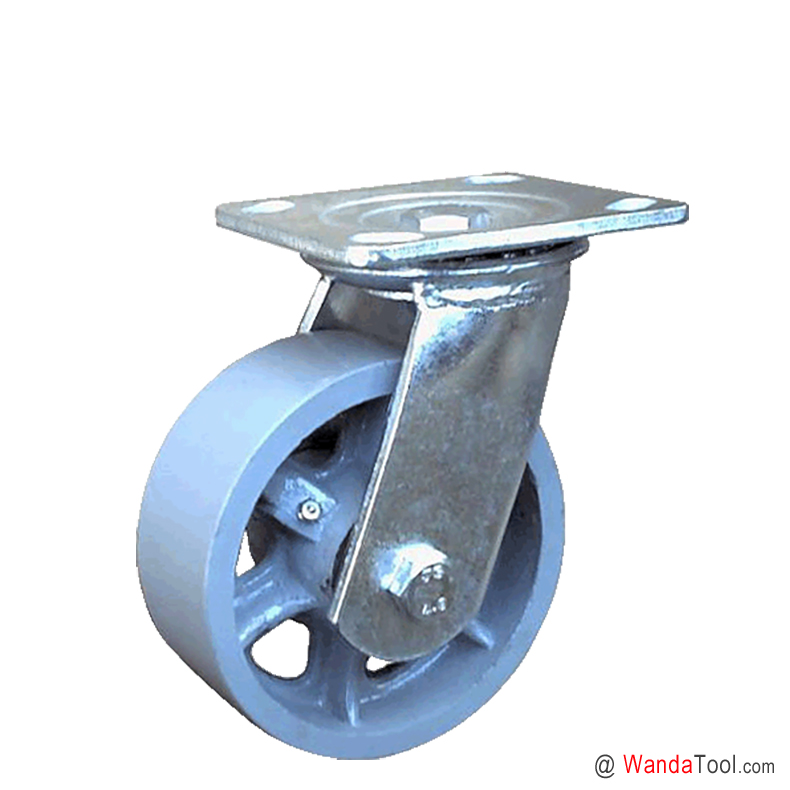

5 × 2 inch Medium heavy duty cast iorn swivel caster | 600PS-125050R-01

5"×2" Cast iron swivel casters have exceptionally long wear life and they are ideal for warehousing, general material handling and manufacturing. In addition, they can be used in temperature extremes. 600PS-125050R-01 Series medium heavy duty casters with cast iron caster wheels are cold formed steel and recommended for medium to medium heavy duty applications.

Featured 5"×2" Medium heavy duty cast iorn swivel caster

• Top Plate & Yoke Base: Cold formed from 6mm steel plate. Contact us for Custom Made notched yoke base for factory or installable 4-position swivel lock.

• Swivel Section: Smooth formed, double ball bearing raceways swivel head.

• Fork Legs: 6 mm steel formed to increase strength and welded inside and outside to yoke base.

• Bearing & Axle: Standard straight roller bearing with drilled hardened steel spanner bushing and plastic side retaining thrust washers. 12.5mm diameter wheel solid axle complete with lock nut.

• Lubrication: Zerk in swivel section and wheel for easy lubrication.

• Finish: Zinc plated to resist corrosion.

Custom made 5"×2" Medium heavy duty cast iorn swivel caster

• Yoke Base: Notched yoke base for factory or installable 4-position swivel lock available.

• Swivel head sealed: Rubber seals available.

• Side Washers: Metal step retaining thrust washers available.

• Wheel Axle: 1/2 inch hollow axle with grease fitting available.

• Finish: Electrophoresis black plated to resist corrosion available.
