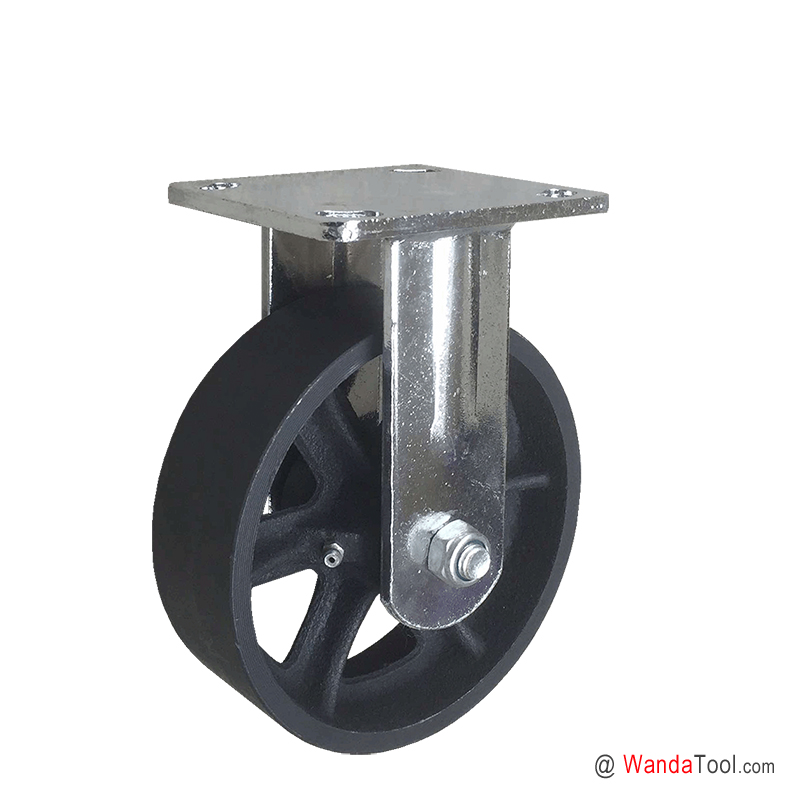

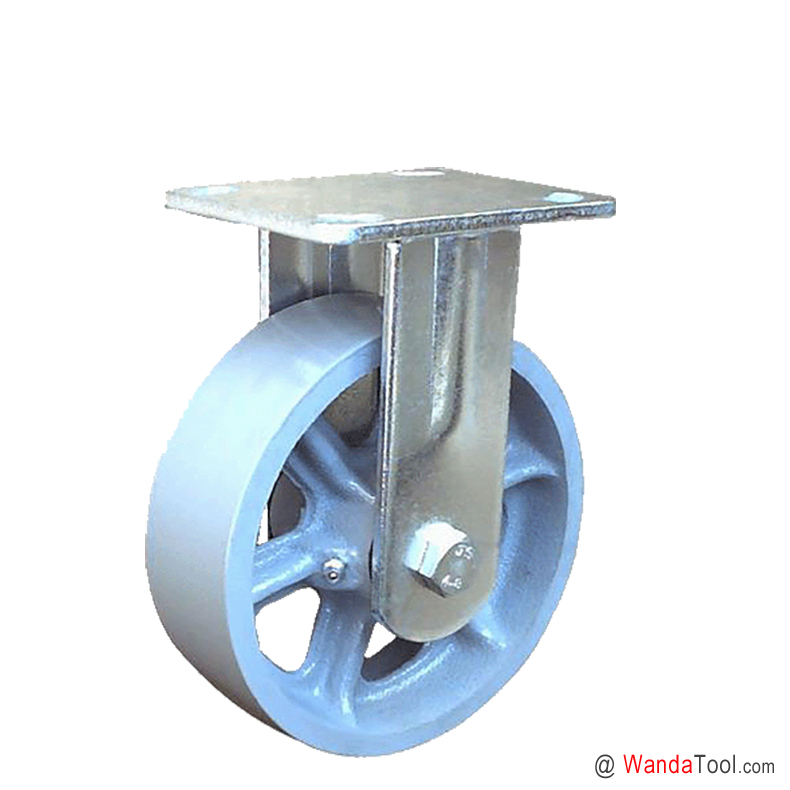

Cast iron caster - 6"×2" Rigid caster - 1100 lbs Capacity | 600PF-150050R-01
- Part No.: 600PF-150050R-01
- Wheel Dia.: 150 mm / 6 inch caster
- Tread Width: 50 mm / 2 inch caster
- Wheel Mat.: Cast iron wheel caster
- Type: Rigid caster
- Mounting: Top plate caster
- Load Cap.: 500 kg / 1100 lbs caster
- APP: Medium heavy duty industrial caster
Technical Data
| CASTER TECHNICAL | °C / mm / kg | °F / inch / lbs |
| Wheel Diameter | 150 mm | 6 inch |
| Tread Width | 50 mm | 2 inch |
| Wheel Material | Cast iorn wheel | Cast iorn wheel |
| Hardness of Tread | ||
| Wheel Bearing | Roller bearing | Roller bearing |
| Fitting Type | Top plate caster | Top plate caster |
| Size of Plate | 115×100 mm | 4.5×4 inch |
| Plate Hole Centers | 92×75 to 75×67 mm | 3.625×3 to 3×2.625 inch |
| Plate Hole | 11 mm | 0.43 inch |
| Swivel Offset | N/A | N/A |
| Swivel Radius | N/A | N/A |
| Overall Height | 189 mm | 7.45 inch |
| Caster Brake | No brake rigid caster | No brake rigid caster |
| Standard | ||
| Load Capacity | 500 kg | 1,100 lbs |
| Caster Weight | ||
| Part No. | 600PF-150050R-01 | 600PF-150050R-01 |
| SKU | 6915006010 | 6915006010 |
Features
6"×2" Medium heavy duty cast iorn rigid caster | 600PF-150050R-01
6"×2" Cast iron rigid casters have exceptionally long wear life and they are ideal for warehousing, general material handling and manufacturing. In addition, they can be used in temperature extremes. 600PF-150050R-01 Series medium heavy duty casters with cast iron caster wheels are cold formed steel and recommended for medium to medium heavy duty applications.
Featured 6"×2" Medium heavy duty cast iorn rigid caster
Top Plate: Cold formed from 6mm steel plate.
Fork Legs: 6 mm steel formed to increase strength and welded inside and outside to top plate.
Bearing & Axle: Standard straight roller bearing with drilled hardened steel spanner bushing and plastic side retaining thrust washers. 12.5mm diameter wheel solid axle complete with lock nut.
Lubrication: Zerk in wheel for easy lubrication.
Finish: Zinc plated to resist corrosion.
Custom made 6"×2" Medium heavy duty cast iorn rigid caster
Side Washers: Metal step retaining thrust washers available.
Wheel Axle: 12.5 mm hollow axle with grease fitting available.
Finish: Electrophoresis black plated to resist corrosion available.
Drawing
Accessories & Versions
Download
