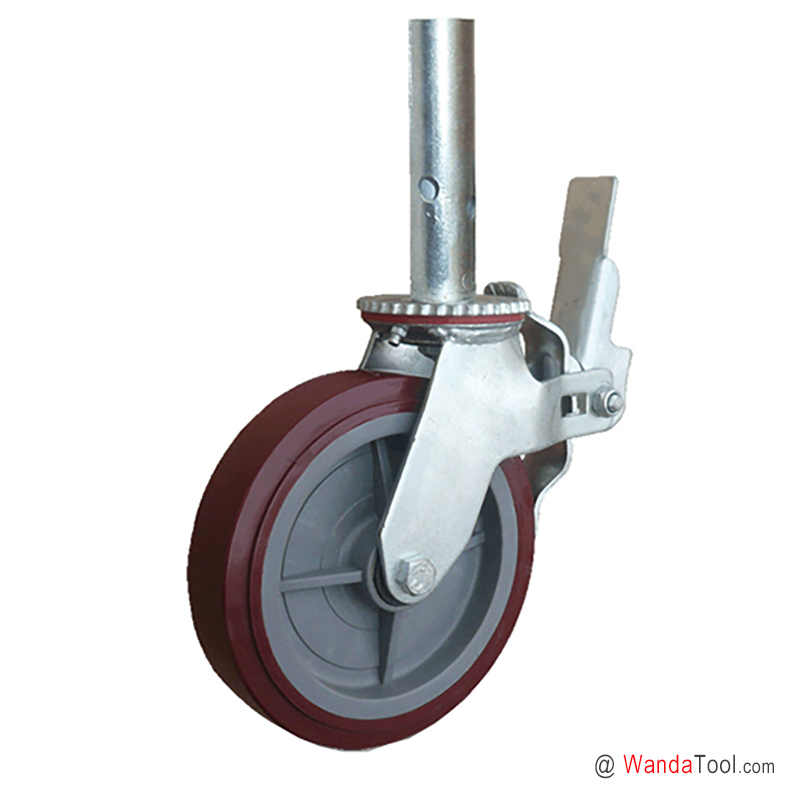

Scaffolding caster - 8" Scaffold caster - 38mm OD Tube stem scaffold caster with TPU wheel | SCAIA-200050R-93

Part No.: SCAIA-200050R-93
Wheel Dia.: 200 mm / 8 inch caster

Tread Width: 50 mm / 2 inch caster
Wheel Type: PU on PP wheel

Caster Type: Total lock swivel caster
Fitting Type: 38mm OD tube caster

Load Cap.: 300 kg / 660 lbs caster
APP: Tube type scaffolding caster

Order Technical Support

*　Product Name：	Please enter the product name ordered
*　Name：	Please enter your name
*　Tel：	Please enter your phone
*　Email：	Please enter your correct email address
*　Order message：	Please enter your order message
	Yes, I'd like to receive news about Scaffolding caster - 8" Scaffold caster - 38mm OD Tube stem scaffold caster with TPU wheel \| SCAIA-200050R-93.

Details

Technical Data

CASTER TECHNICAL	°C / mm / kg	°F / inch / lbs
Wheel Diameter	200 mm	8 inch
Width of Tread	50 mm	2 inch
Wheel Material	TPU on PP wheel	TPU on PP wheel
Hardness of Tread	Shore A 90	Shore A 90
Wheel Bearing	Roller bearing	Roller bearing
Fitting Type	Tube type caster	Tube type caster
Tube Type	38 mm OD / 32 mm ID	1.5 inch OD / 1.25 inch ID
Tube Length	150 mm	6 inch
Hole Spacing (L1)	75 mm	3 inch
Hole diameter (P1)	-	-
Hole Spacing (L2)	-	-
Hole diameter (P2)	-	-
Swivel Offset	53 mm	2.08 inch
Swivel Radius	153 mm	6.02 inch
Overall Height	237 mm	9.33 inch
Caster Brake	Swivel caster with total lock	Swivel caster with total lock
Load Capacity	300 kg	660 lbs
Caster Weight
Part No.	SCAIA-200050R-93	SCAIA-200050R-93
SKU	6920000082000	6920000082000

Features

8"×2" 38mm OD Tube stem scaffold caster with TPU wheel | SCAIA-200050R-93

8-inch TPU scaffold casters with 38mm OD tube stem are equipped with total lock brakes. This is a scaffold caster specially designed for the standing and short-distance movement of construction scaffolding equipment. 440-1100lbs load capacity per caster, features an easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning. SCAIA-200050R-93 series scaffold caster has the characteristics of scientific design, convenient operation and safe use.

WandaTool's SCAIA tube type scaffold castors are designed to accommodate a variety of scaffold tubing including Mild Steel or Aluminium with an inside diameter of 40mm.

Featured 8 inch 38mm OD Tube stem scaffold caster with TPU wheel

? Caster Housing: The housing is made of high-quality pressed steel and double-sided welding to upper raceway way, which can withstand high load environment. Formed rig is stronger than welded design.

? Mounting and Swivel Cross Section: 38mm OD and 32mm ID tube type scaffolding caster. Pressed steel double ball raceway swivel. King bolt and nut construction for added strength.

? Swivel head sealed: Polyurethane seal ring keeps out debris.

? Total lock brake: Easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning.

? Lubrication: Zerk in swivel section and wheel for easy lubrication.

? Polyurethane on Polypropylene Wheel: This polyurethane wheel has excellent properties where wash-down of material handling equipment is required. Tread is mechanically locked to an injection molded polymer core to prevent separation. Polyurethane wheels offer greater load capacity than rubber. They offer excellent floor protection. These wheels resist chemicals, acids, caustics and oils.

? Bearing & Axle: Standard straight roller bearing with drilled hardened steel spanner bushing and plastic side retaining thrust washers. 12.5mm diameter wheel solid axle complete with lock nut.

? Lubrication: Zerk in swivel section and wheel for easy lubrication.
