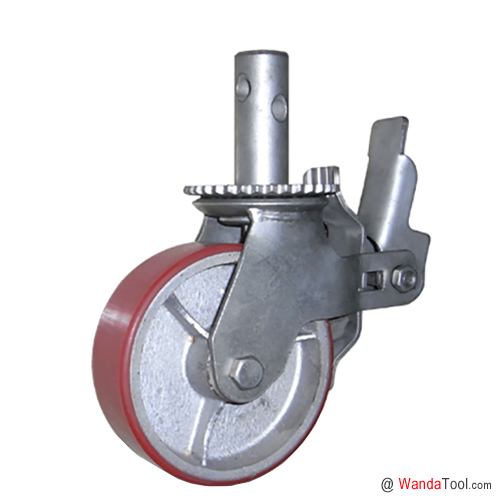

Scaffold caster - 6 inch Scaffolding wheel caster - 34.5mm OD Solid stem scaffolding wheel - 800 lbs Capacity | SCAFA-150050R-13

Part No.: SCAFA-150050R-13
Wheel Dia.: 150 mm / 6 inch caster

Tread Width: 50 mm / 2 inch caster
Wheel Type: PU on cast iron wheel

Caster Type: Total lock swivel caster
Fitting Type: 34.5mm OD Solid stem caster

Load Cap.: 360 kg / 800 lbs caster
APP: Scaffolding caster

Order Technical Support

*　Product Name：	Please enter the product name ordered
*　Name：	Please enter your name
*　Tel：	Please enter your phone
*　Email：	Please enter your correct email address
*　Order message：	Please enter your order message
	Yes, I'd like to receive news about Scaffold caster - 6 inch Scaffolding wheel caster - 34.5mm OD Solid stem scaffolding wheel - 800 lbs Capacity \| SCAFA-150050R-13.

Details

Technical Data

CASTER TECHNICAL	°C / mm / kg	°F / inch / lbs
Wheel Diameter	150 mm	6 inch
Width of Tread	50 mm	2 inch
Wheel Material	Moldon PU on cast iron wheel	Moldon PU on cast iron wheel
Hardness of Tread	Shore A 97	Shore A 97
Wheel Bearing	Roller bearing	Roller bearing
Fitting Type	Solid round stem caster	Solid round stem caster
Stem O.D.	34.5 mm	1.36 inch
Stem Length	100 mm	4 inch
Hole Spacing (L1)	63.5 mm	2.5 inch
Hole diameter (P1)	12.7 mm	0.5 inch
Hole Spacing (L2)	50.8 mm	2 inch
Hole diameter (P2)	12.7 mm	0.5 inch
Swivel Offset	41 mm	1.61 inch
Swivel Radius	116 mm	4.56 inch
Overall Height	187 mm	7.36 inch
Caster Brake	Total lock swivel caster	Total lock swivel caster
Load Capacity	360 kg	800 lbs
Caster Weight	kg	lbs
Part No.	SCAFA-150050R-13	SCAFA-150050R-13
SKU	6915000880000	6915000880000

Features

6"×2" Solid stem standard scaffold caster with moldon PU wheel | SCAFA-150050R-13

6-inch Mold-on polyurethane on cast iron core solid stem standard scaffold caster are equipped with total lock brakes. This is a standard scaffold caster specially designed for the standing and short-distance movement of construction scaffolding equipment. 440-1100lbs load capacity per caster, features an easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning. SCAFA series scaffold caster has the characteristics of scientific design, convenient operation and safe use.

Featured 6 inch Solid stem standard scaffold caster with moldon polyurethane wheel

? Caster Housing: The housing is made of high-quality pressed steel and double-sided welding to upper raceway way, which can withstand high load environment. Formed rig is stronger than welded design.

? Mounting and Swivel Cross Section: 34.5mm Diameter solid stem. Pressed steel double ball raceway swivel. King bolt and nut construction for added strength.

? Swivel head sealed: Polyurethane seal ring keeps out debris.

? Total lock brake: Easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning.

? Lubrication: Zerk in swivel section and wheel for easy lubrication.

? Mold-on Polyurethane Wheel: Polyurethane on cast iron wheels are composed of a polyurethane elastomer, open cast molded, on clean, close tolerance cores. The polyurethane tread is chemically bonded to a cast iron core. High capacity polyurethane protects floors, is non-marking and delivers a quieter operation than standard metal wheels.

? Bearing & Axle: Standard straight roller bearing with drilled hardened steel spanner bushing and plastic side retaining thrust washers. 12.5mm diameter wheel solid axle complete with lock nut.

? Lubrication: Zerk in swivel section and wheel for easy lubrication.
