5" Multifunction scaffolding caster - Square pipe stem locking caster - Rubber wheel caster | SCMSP-125032-02
- Part No.: SCMSP-125032-02
- Wheel Dia.: 125 mm / 5 inch caster
- Tread Width: 32 mm / 1.25 inch caster
- Wheel Type.: Rubber wheel caster
- Caster Type: Swivel with total lock caster
- Fitting Type: Square pipe stem caster
- Load Cap.: 120 kg / 265 lbs caster
- APP: Scaffolding caster
Technical Data
| CASTER TECHNICAL | °C / mm / kg | °F / inch / lbs |
| Wheel Diameter (D) | 125 mm | 5 inch |
| Width of Tread (W) | 32 mm | 1.25 inch |
| Wheel Material | Black rubber wheel | |
| Hardness of Tread | 85 Shore A | |
| Wheel Bearing | Plain bore | |
| Caster Brake | Total lock brake swivel caster | |
| Fitting Type | Square pipe stem caster | |
| Square Pipe Type (A×B) | 32×32 mm | 1.26×1.26 inch |
| Square Pipe Length (L) | 92 mm | 3.62 inch |
| Hole Spacing (L1) | 63.5 mm | 2.5 inch |
| Hole diameter (P) | 12.7 mm | 0.5 inch |
| Hole Spacing (L2) | N/A | N/A |
| Hole diameter (P2) | N/A | N/A |
| Swivel Offset (E) | 28 mm | 1.1 inch |
| Swivel Radius (R) | 88 mm | 3.5 inch |
| Load Height (H) | 155 mm | 6.10 inch |
| Load Capacity | 120 kg | 265 lbs |
| Caster Weight | 1.37 kg | 3.02 lbs |
| Packing | 4PCS/CTN | |
| Remark | ||
| Part No. | SCMSP-125032-02 | |
| SKU | 6912500771 | |
Features
5" Multifunction scaffolding caster - Square pipe stem locking caster - Rubber wheel caster | SCMSP-125032-02
SCMSP series Economic multifunction casters made for use with multifunction units, otherwise known as Perry-style or bakers scaffolding are made of 2.3mm steel plate. These square pipe stem scaffold casters are designed to fit square tube posts form mobile shelf carts and other transport units. Easy to install-simply remove adjustable foot assembly on each post, and gently tap the casters into the post until fully inserted. The tread provides good floor protection along with quiet operation.

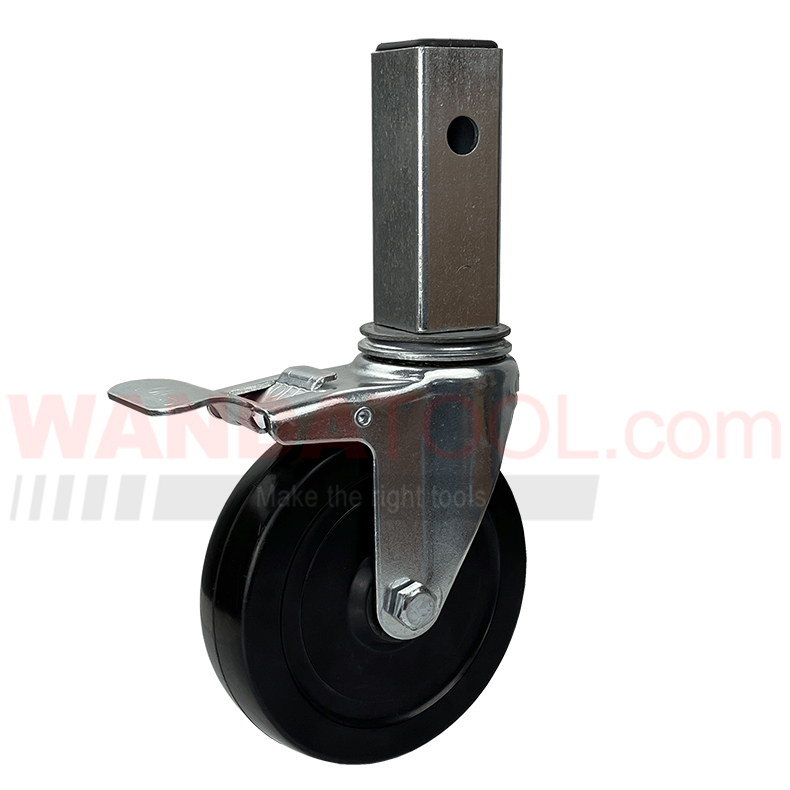

Featured 5 inch square pipe stem scaffold caster with black rubber wheel
Castor Housing: The housing is made of high-quality pressed steel.
Mounting and Swivel Cross Section: 1.25 inch square pipe stem type with cross drilled hole scaffolding caster. Pressed steel double ball raceway in swivel head.
Total Lock: Integrated brakes lock caster and wheel simultaneously.
Black rubber wheel
Square pipe stem is light and economy

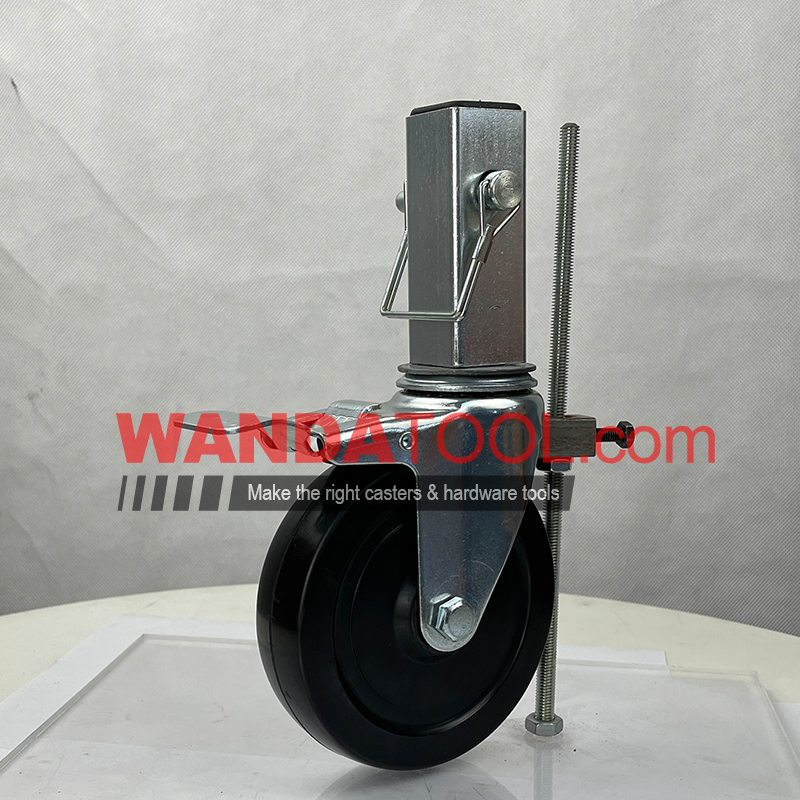

Custom Made 5" Multifunction scaffolding caster with black rubber wheel
For customization & special application options, consult please.

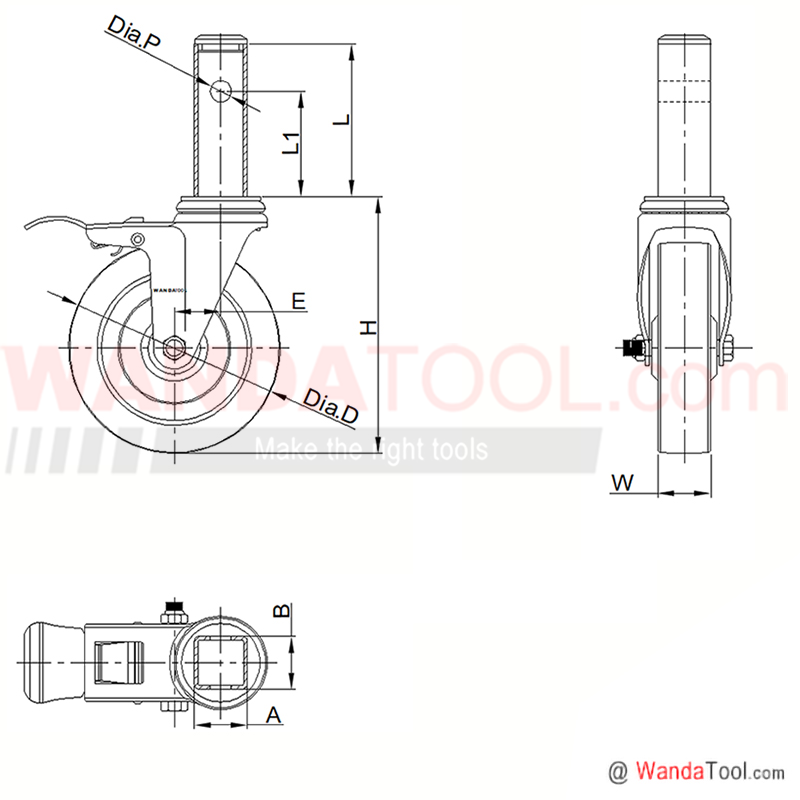

Drawing
Accessories & Versions
Download
