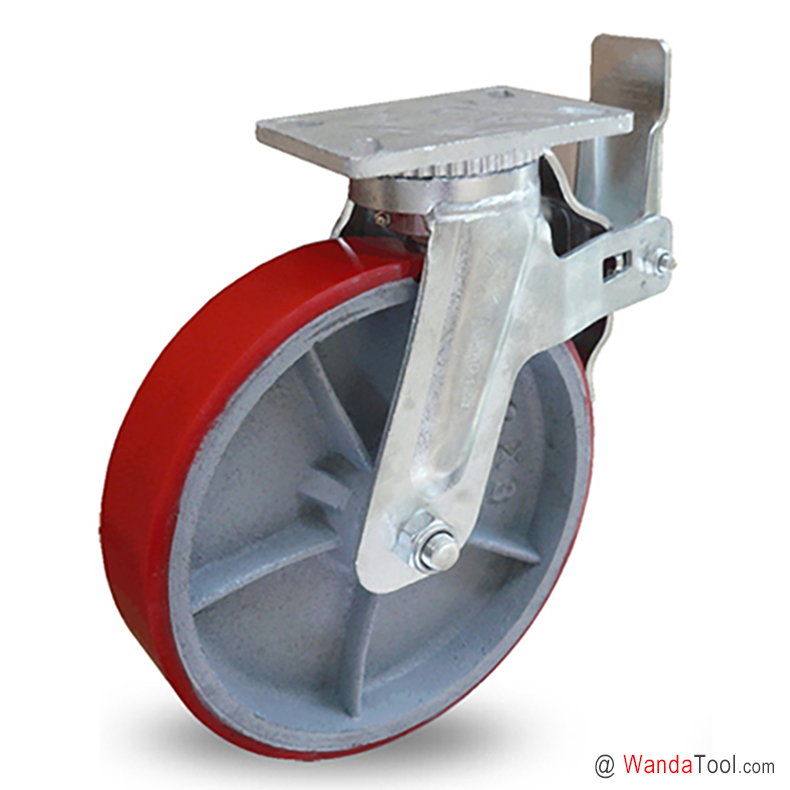

Scaffolding wheel - 12 inch Scaffolding wheel caster - Super duty scaffolding caster | SCUPU-300075DB-13
- Part No.: SCUPU-300075DB-13
- Wheel Dia.: 300 mm / 12 inch caster
- Tread Width: 75 mm / 12 inch caster
- Wheel Mat.: Moldon PU wheel
- Type: Swivel with total lock
- Mounting: Top plate caster
- Load Cap.: 1500 kg / 3000 lbs caster
- APP: Scaffolding wheel caster
Technical Data
| CASTER TECHNICAL | °C / mm / kg | °F / inch / lbs |
| Wheel Diameter | 300 mm | 12 inch |
| Tread Width | 75 mm | 3 inch |
| Wheel Material | PU on cast iorn wheel | PU on cast iorn wheel |
| Hardness of Tread | Shore A 95 | Shore A 95 |
| Wheel Bearing | Double ball bearing | Double ball bearing |
| Mounting Plate | Top plate caster | Top plate caster |
| Size of Plate | 169×127 mm | 6.65×5 inch |
| Plate Hole Centres | 135×93 to 125×63 mm | 5.3×3.7 to 5×2.5 inch |
| Plate Hole | 13 mm | 0.51 inch |
| Swivel Offset | 63 mm | 2.5 inch |
| Swivel Radius | 213 mm | 8.39 inch |
| Overall Height | 369 mm | 14.5 inch |
| Caster Brake | Total lock brake casters | Total lock brake casters |
| Load Capacity | 1,500 kg | 3,300 lbs |
| Caster Weight | ||
| Part No. | SCUPU-300075DB-13 | SCUPU-300075DB-13 |
| SKU | 6930000030 | 6930000030 |
Features
12 inch Heavy duty scaffold locking caster with PU on semi steel core wheel | SCUPU-300075DB-13
12-inch Mold-on polyurethane on semi steel core heavy duty scaffold caster are equipped with total lock brakes. This is a heavy-duty universal caster specially designed for the standing and short-distance movement of heavy equipment and heavy construction scaffolding equipment. 3500lbs load capacity per caster. This caster features an easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning. SCUPU series caster has the characteristics of scientific design, convenient operation and safe use.
FEATURES
Top plate: The integrally formed 1045 cast steel top plate can effectively prevent deformation. King bolt and nut construction for added strength.
CNC high-precision machining double ball raceway designed with grease fitting, easy to maintain and maintain
The housing is made of high-quality pressed thick steel and double-sided welding, which can withstand high load environment.
Features an easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning.
Moldon polyurethane on semi steel wheel with high strength and large size double ball bearing.
CUSTOM MADE 12INCH SCAFFOLD CASTER AVAILABLE
