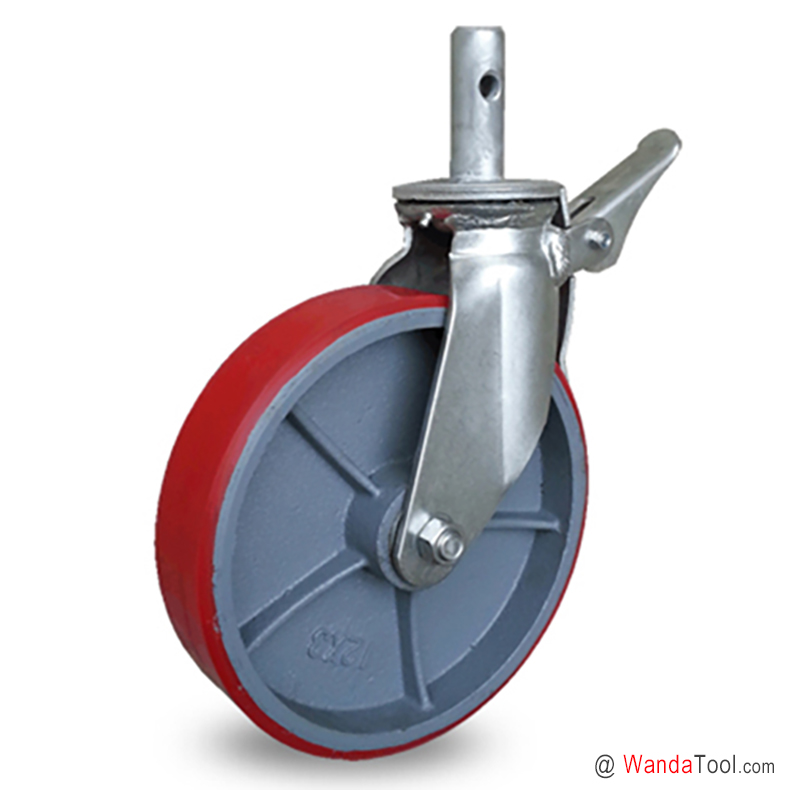

Scaffold caster - 12 inch Solid stem scaffolding caster with PU on semi-steel wheel | SCUFA-300075R-13
- Part No.: SCUFA-300075R-13
- Wheel Dia.: 300 mm / 12 inch caster
- Tread Width: 75mm / 3inch caster
- Wheel Mat.: PU on semi steel caster
- Caster Type: Total lock swivel caster
- Fitting Type: Solid stem scaffold caster
- Load Cap.: 800kg / 1760 lbs
- APP: Scaffolding caster
Technical Data
| CASTER TECHNICAL | °C / mm / kg | °F / inch / lbs |
| Wheel Diameter | 300 mm | 12 inch |
| Tread Width | 75 mm | 3 inch |
| Wheel Material | PU on cast iorn wheel | PU on cast iorn wheel |
| Hardness of Tread | Shore A 95 | Shore A 95 |
| Wheel Bearing | Roller bearing | Roller bearing |
| Fitting Type | Solid round stem | Solid round stem |
| Stem Size | OD34.5×100 mm | OD1.36×4 inch |
| Hole Spacing (L1) | 63.5 mm | 2.5 inch |
| Hole diameter (P1) | 12.7 mm | 0.5 inch |
| Hole Spacing (L2) | 50.8 mm | 2 inch |
| Hole diameter (P2) | 12.7 mm | 0.5 inch |
| Swivel Offset | 73 mm | 2.87 inch |
| Swivel Radius | 223 mm | 8.78 inch |
| Overall Height | 368 mm | 14.5 inch |
| Caster Brake | Total lock brake casters | Total lock brake casters |
| Load Capacity | 800 kg | 1,760 lbs |
| Caster Weight | ||
| Part No. | SCUFA-300075R-13 | SCUFA-300075R-13 |
| SKU | 69300000200 | 69300000200 |
Features
Drawing
Accessories & Versions
Download
